Solar Panels Giant FA/FI

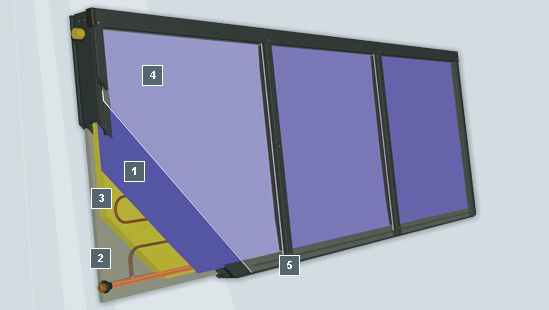

SOLAR COLLECTOR FA

The collector of large-area FA TiSUN manufactured and delivered in single piece sizes 3 to 18m². (standard widths: 2 to 6m., heights: 1, 1.5, 2 or 3 meters). Manufacture special sizes with or without right angle in any width and height (up to 3x6m single piece). This king size collector is suitable for installation onto the roof and autonomous installation on pitched and flat roofs and on the ground.

 1. Absorbent material: Absorbent material surface fully welded and high quality laser coating PVD, with meander transit system.

 2.  Rare wall: Aluminium

 3.  Insulation: Heat resistant special hard foam PU 20mm and 40mm rockwool, without gas emissions, combustible - A1 DIN 4102 Part 1, SPF certification

 4.  Coating: Prismatic solar safety glass 4mm with high light transmission

 5.  Housing: Aluminium frame construction with powder coated with anthracite and aluminium back of the panel sandwich

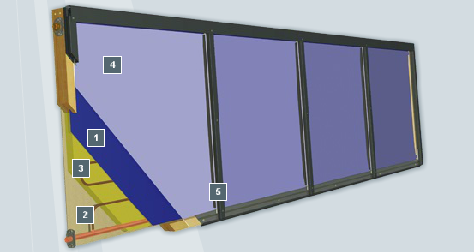

SOLAR COLLECTOR FI

The collector of large surface FI TiSUN fits virtually without joints to the type of roof surface and has a smart dual function: Solar energy and superior insulation! The collector positioning means on the roof is ready for use in standard sizes of 4 to 18 m², but can be manufactured with specific dimensions both with and without right angle to any width and height (up to 3 x 6m in single piece).

 1.  Absorbent material: Absorbent material surface fully welded and high quality laser coating PVD, with meander transit system.

 2.  Rear wall: Wooden

 3.  Insulation: 40mm Rockwool, without gas emissions, combustible - A1 DIN 4102 Part 1, SPF certification

 4.  Coating: Prismatic solar safety glass 4mm with high light transmission

 5.  Housing: Aluminium frame construction with powder coated anthracite and wooden back wall, the wood of the frame is waterproof and heat-resistant.

ADVANTAGES

~ High degree of efficiency - Absorption 94%

~ Simple and easy installation for all possible types of roofing (Variations Mounting: through the roof, onto the roof and central placement standards for 15 different types of housing)

~ Long life thanks to robust construction and materials with durability against extreme temperatures and weather conditions

~ Low heat losses

~ 10 years guarantee

~ Solar Keymark certification indicating the top quality

~ 20 years of strong experience and expertise

~ High level of aesthetics integrated in both architecture and environment
